ACO Multiline Seal in

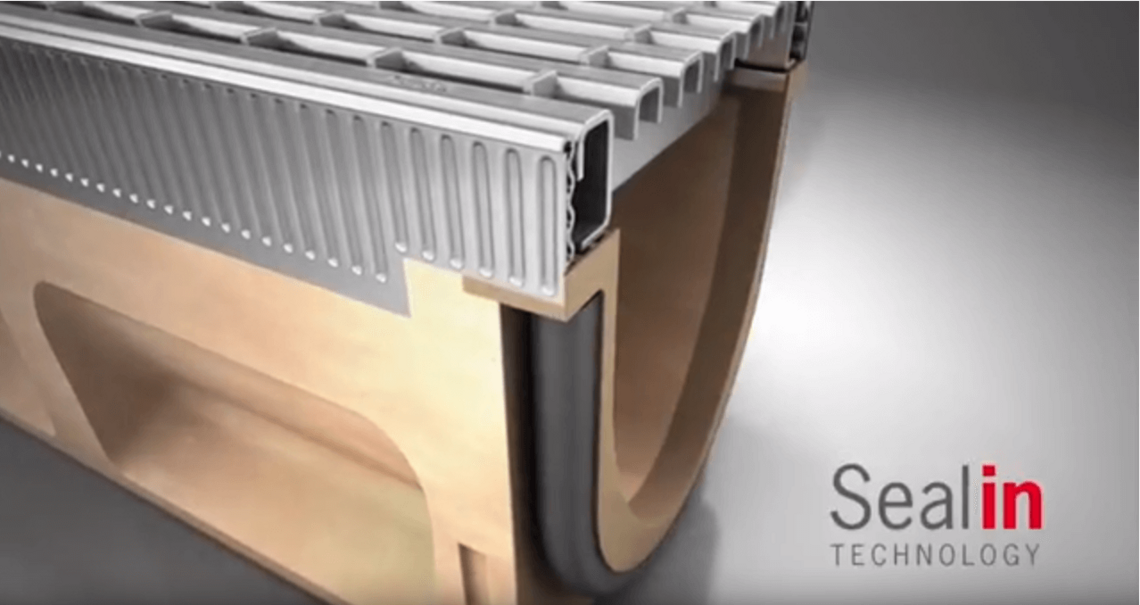

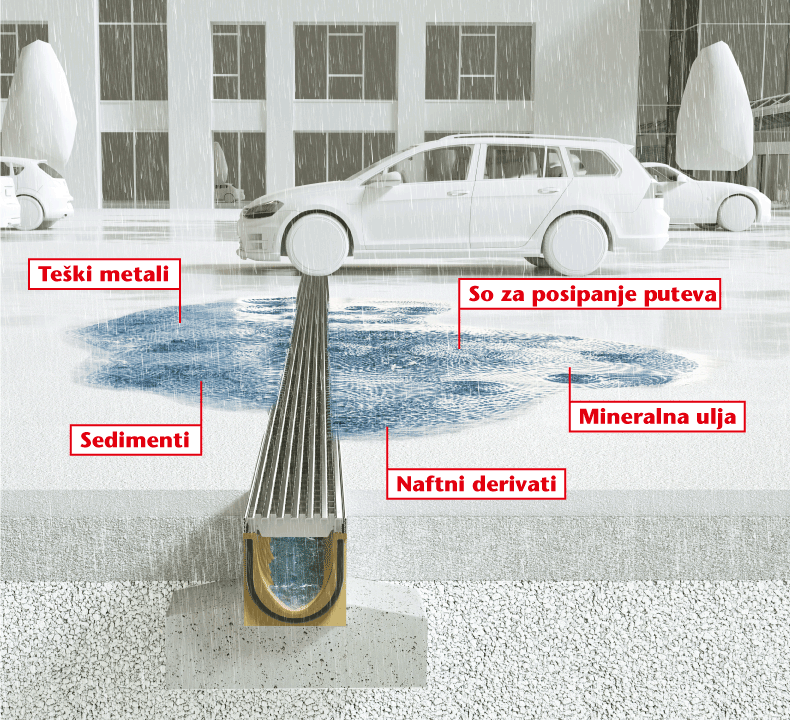

Kompanija ACO nakon 40 godina kontinuiranog ulaganja u razvoj kanala za linijsko odvodnjavanje opet podiže lestvicu na najviši nivo. Postoji ozbiljan problem mogućeg zagađenja podzemnih voda usled ispiranja opasnih materija sa putničkih i ostalih površina (teški metali, prašina s kočionih obloga, benzini, ulja, sitni elementi auto guma i sl.). Suočen s tom činjenicom, naš stručni tim ponudio je inovativno rešenje za apsolutnu vodonepropusnost spoja korištenjem gumene zaptivke integrisane u telo kanala, ACO Multiline Seal in.

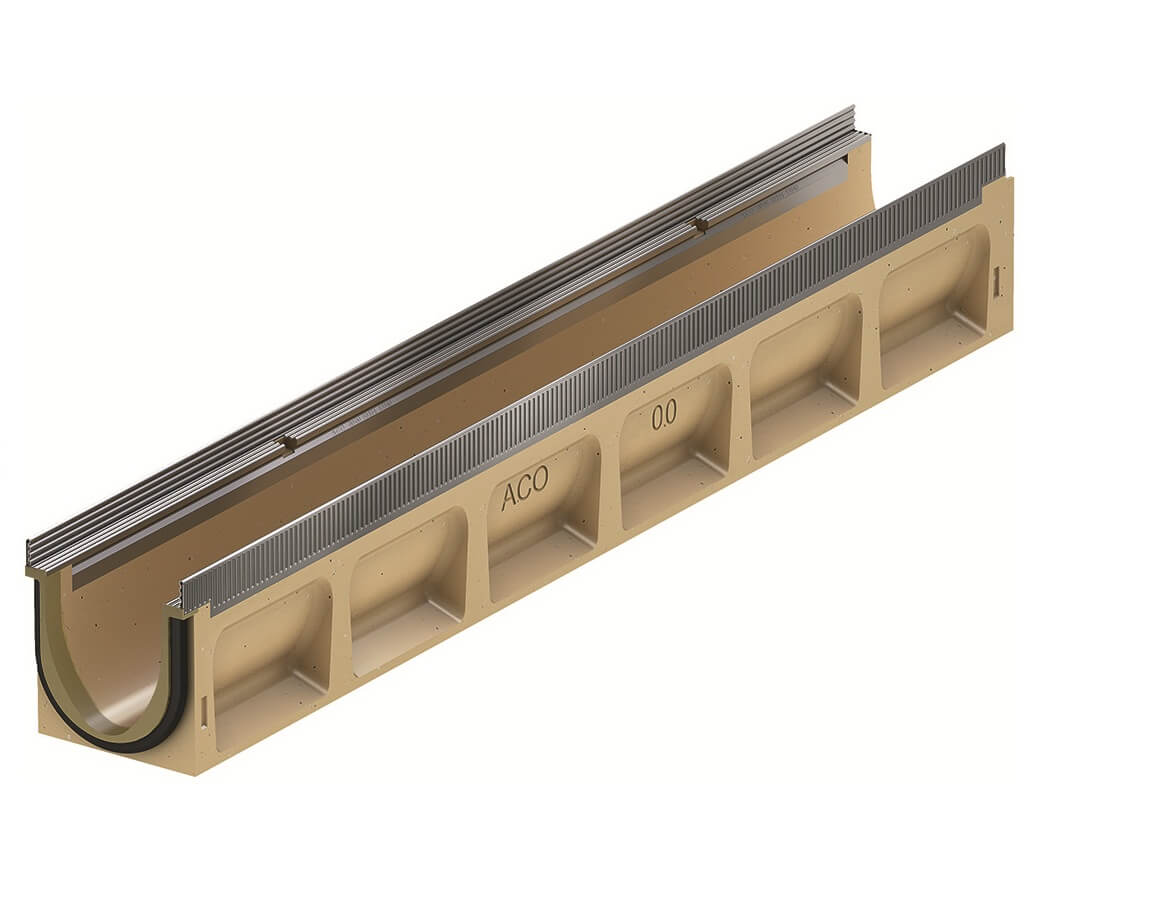

ACO Multiline Seal in

ACO Multiline Seal in

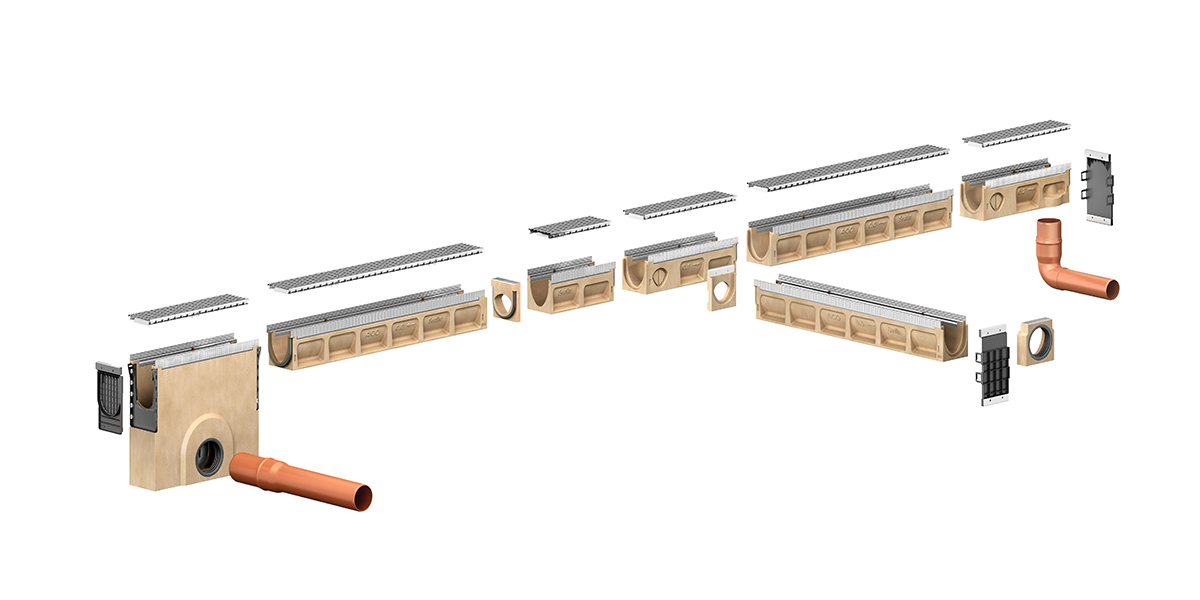

ACO Multiline Seal in - pregled sistema

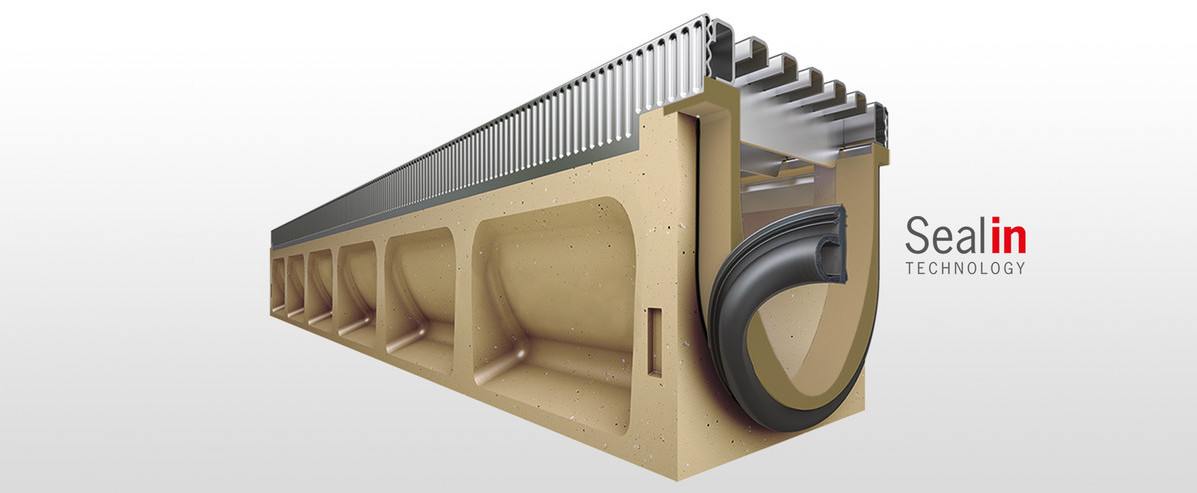

ACO Multiline Seal in - presek

ACO Drainlock

Uživajte u potpunoj slobodi dizajna koju Vam pružaju pokrivne rešetke različitog izgleda, boja i materijala - gvozdene, kompozitne ili od nerđajućeg ili pocinkovanog čelika.

Inovativna ACO proizvodna tehnologija omogućava implementaciju različitih ideja i sposobnosti. Arhitektama se, uz bogat izbor rešetki, nudi mogućnost oblikovanja, stvaranja i naglašavanja jedinstvenog dizajna zadatog projekta, uz garantovano optimalno odvodnjavanje i održivost sistema.

ACO Drain kofigurator

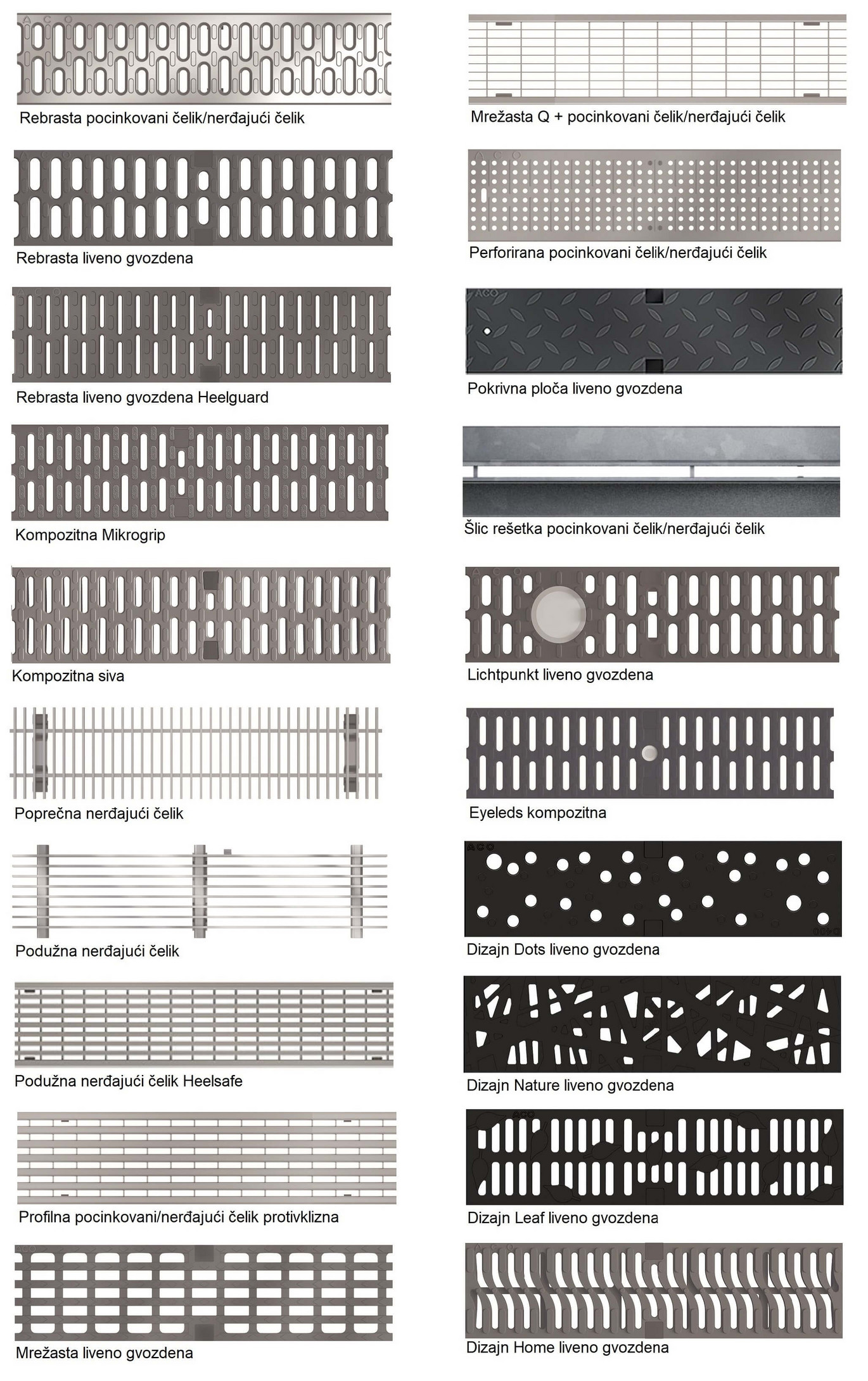

ACO Multiline Seal in - rešetke
ACO Multiline Seal in SRBpdf
ACO Multiline Sealin GERpdf
ACO Brošura održavanje kanalapdf
ACO Multiline Sealin V100pdfdwg
ACO Multiline Sealin V150pdfdwg
ACO Multiline Sealin V200pdfdwg

Tehnički opis ACO Multiline Seal in V100Exlsx
Tehnički opis ACO Multiline Seal in V100Sxlsx
Tehnički opis ACO Multiline Seal in V150Exlsx
Tehnički opis ACO Multiline Seal in V150Sxlsx
Tehnički opis ACO Multiline Seal in V200Exlsx
Tehnički opis ACO Multiline Seal in V200Sxlsx
ACO Multiline Seal in ugradnja u asfaltpdf
ACO Multiline Seal in ugradnja u betonpdf
ACO Multiline Seal in ugradnja u pločnikpdf
ACO Multiline Seal in svi slučajevi ugradnjepdfdwg
ACO Multiline Seal in montažapdf
ACO Uputstvo za ugradnju - opšti deopdf
Deklaracija o performansama ACO Multiline Seal inpdf
0.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
53,950,795,001,005,751,15
103,700,375,300,536,450,65
153,500,235,550,376,950,46
203,360,175,800,297,200,36
253,200,135,880,247,500,30
303,090,106,000,207,710,26
352,980,096,130,187,880,23
402,920,076,200,168,000,20
452,840,066,230,148,100,18
502,760,066,250,138,150,16
10.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
57,181,448,501,709,601,92
106,700,679,000,9010,501,05
156,380,439,300,6211,100,74
206,120,319,500,4811,600,58
255,880,249,630,3912,000,48
305,700,199,750,3312,300,41
355,500,169,910,2812,430,36
405,360,1310,000,2512,580,31
455,170,1110,040,2212,780,28
505,100,1010,150,2013,000,26
20.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
511,052,2112,702,5413,902,78
1010,301,0313,001,3015,001,50
159,830,6613,350,8915,751,05
209,400,4713,700,6916,400,82
259,100,3613,880,5616,850,67
308,790,2913,950,4717,220,57
358,400,2414,110,4017,500,50
408,240,2114,200,3617,720,44
458,010,1814,270,3217,870,40
507,850,1614,350,2918,000,36
0.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
510,552,1112,452,4914,152,83
1010,001,0013,401,3415,801,58
159,600,6413,950,9316,951,13
209,320,4714,600,7318,060,90
259,000,3615,000,6018,750,75
308,790,2915,300,5119,200,64
358,570,2415,610,4519,780,57
408,320,2115,800,4020,000,50
458,190,1816,150,3620,520,46
508,000,1616,250,3320,900,42
10.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
516,103,2218,453,6920,504,10
1015,201,5219,201,9222,502,25
1514,650,9820,101,3423,851,59
2014,180,7120,801,0425,001,25
2513,750,5521,250,8526,001,04
3013,410,4521,600,7226,700,89
3512,950,3722,050,6327,300,78
4012,800,3222,200,5628,000,70
4512,420,2822,500,5028,350,63
5012,250,2522,800,4628,750,58
20.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
521,654,3324,354,8726,755,35
1020,302,0325,002,5028,502,85
1519,501,3025,951,7330,302,02
2019,000,9526,601,3331,601,58
2518,250,7327,251,0932,881,32
3018,000,6027,600,9233,751,13
3517,500,5028,000,8034,650,99
4017,000,4328,400,7135,200,88
4516,650,3728,580,6435,550,79
5016,250,3328,750,5836,000,72
0.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
521,254,2524,254,8527,005,40
1020,152,0225,502,5529,802,98
1519,501,3026,851,7931,952,13
2019,000,9528,001,4034,001,70
2518,500,7428,751,1535,251,41
3018,000,6029,400,9836,301,21
3517,680,5130,100,8637,451,07
4017,280,4330,400,7638,400,96
4517,100,3831,050,6939,150,87
5016,750,3431,500,6340,000,80
10.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
528,255,6531,756,3535,007,00
1026,502,6533,003,3038,003,80
1525,951,7334,352,2940,202,68
2025,201,2635,601,4642,402,12
2524,500,9836,501,4644,501,78
3024,000,8037,501,2545,901,53
3523,450,6738,150,9746,901,34
4023,040,5838,880,9748,001,20
4522,730,5139,150,8749,051,09
5022,000,4439,500,7949,841,00
20.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
537,557,5141,508,3045,209,04
1035,203,5242,504,2547,104,77
1533,752,2543,502,9050,403,36
2033,001,6544,682,2352,802,64
2532,251,2945,751,8355,002,20
3031,501,0546,801,5657,001,90
3530,800,8847,811,3758,451,67
4030,400,7648,601,2259,601,49
4529,700,6649,051,0960,301,34
5029,500,5949,500,9961,001,22

ACO ED Multiline Seal in

ACO ED Multiline Seal in

ACO Multiline Seal in kanal sa dihtungom

ACO Multiline Seal in kanal sa dihtungom
