ACO DRAIN® Multiline®

ACO DRAIN® Multiline® generacija kanala za odvodnjavanje postavlja nove standarde u oblasti projektovanja, izvođenja i efikasnosti linijskih sistema odvodnjavanja. Sa dugogodišnjim iskustvom i prisutnošću na najrazličitijim projektima, uvođenjem kanala za odvodnjavanje nove generacije, postigli smo napredak u svim područjima primene.

ACO Drain® Multiline®

ACO Multiline

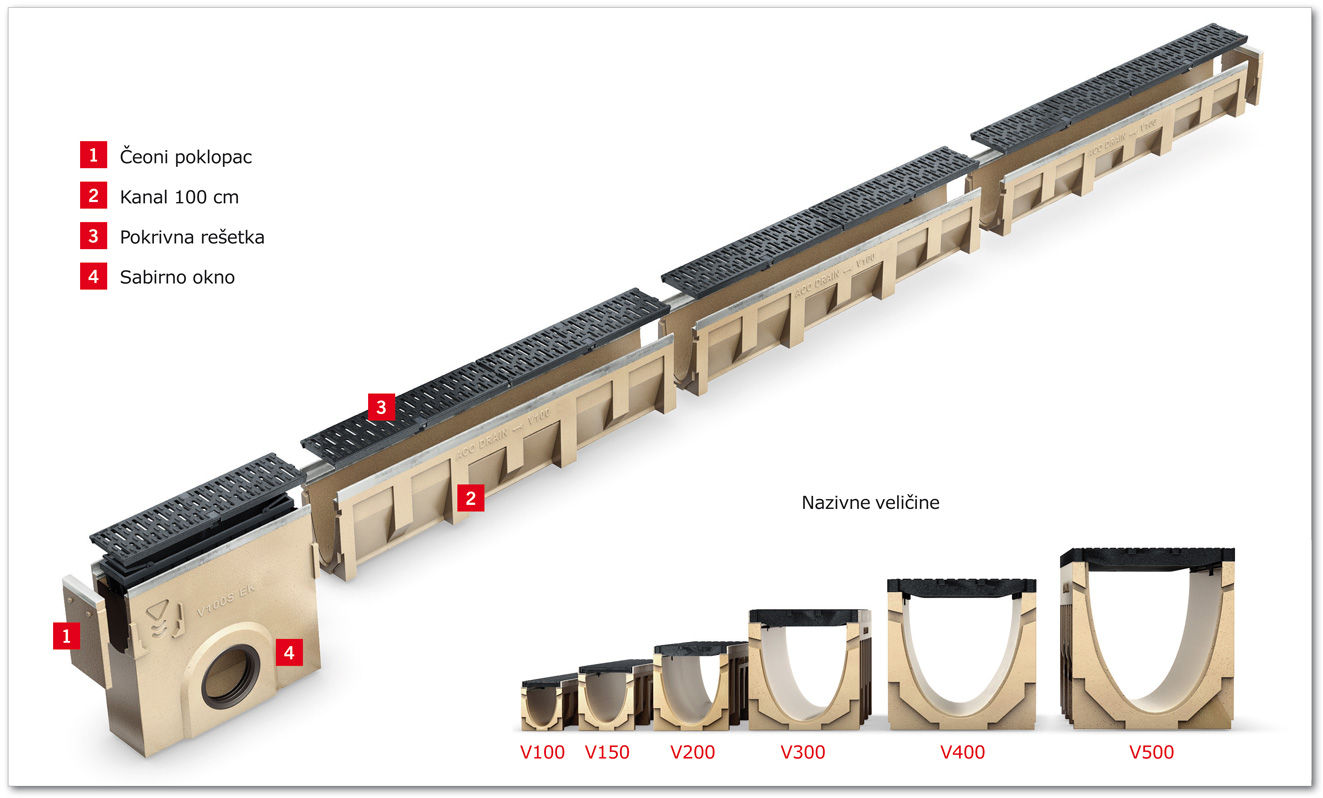

ACO Multiline sistem

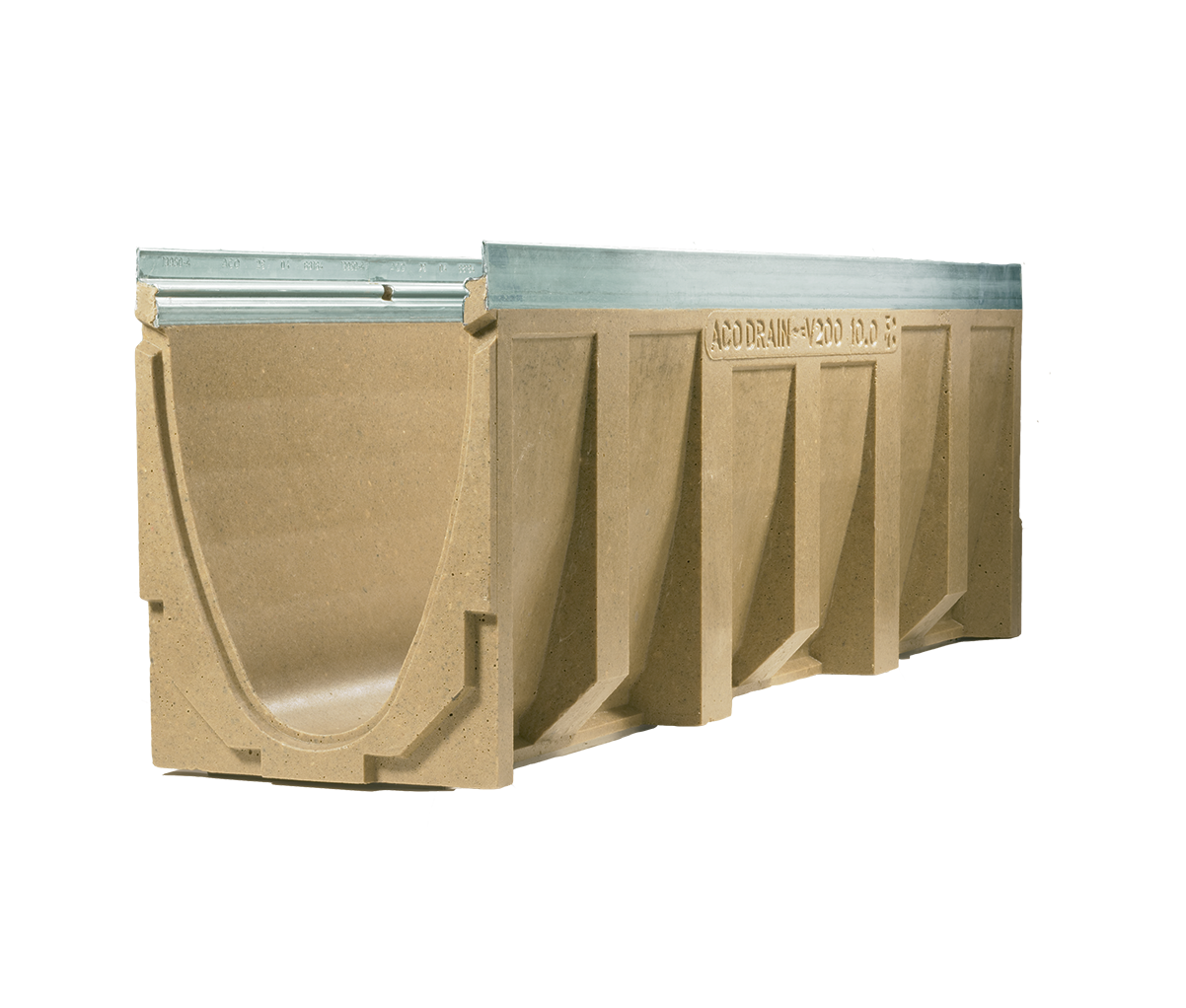

Sistem linijskih kanala za odvodnjavanje, proizvedenih od polimer betona, u skladu sa SRPS EN 1433, za klase opterećenja A15 – E600 KN, u širinama svetlog otvora 100, 150, 200, 300, 400 i 500 mm, sa zaštitnim rubom od pocinkovanog čelika, livenog gvožđa ili nerđajućeg čelika. Pet klasa opterećenja, šest svetlih širina, tri materijala zaštitnog ruba, predstavljaju prednost za široko polje primene.

  • V oblik poprečnog preseka kanala znatno poboljšava kapacitet odvodnjavanja i povećava efekat samočišćenja dna kanala
  • Nova struktura bočnih zidova kanala i inteligentna kombinacija materijala značajno povećavaju stabilnost i nosivost tela
  • Primenom ovih inovacija omogućava se jedostavnija ugradnja uz izrazito velike klase opterećenja
  • Multifunkcionalan sistem omogućava ugradnju kanala u svim područjima primene
  • ACO polimer beton je izuzetno gladak i vodonepropustan material, koji uz zaptivanje spojeva kanala elastičnom masom, omogućava vodonepropusnost čitave linije kanala
  • Potpuna nepropusnost kanala do samog vrha zaštitnog ruba
  • Pomoću nove integrisane dvostruke zaptivke osigurava se nepropustan spoj na osnovnu kanalizaciju
  • ACO polimer beton ne upija vodu i otporan je na so, mraz i naftne derivate
ACO Multiline - nerđajući čelik

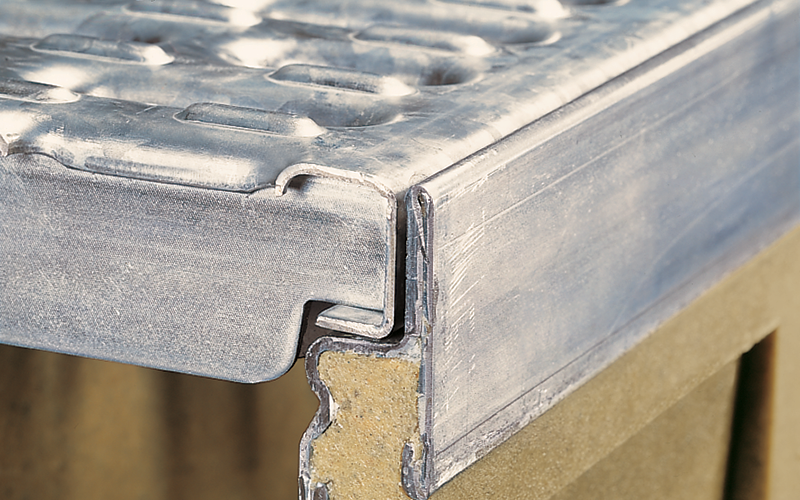

Zaštitni rub od nerđajućeg čelika

ACO Multline - pocinkovani čelik

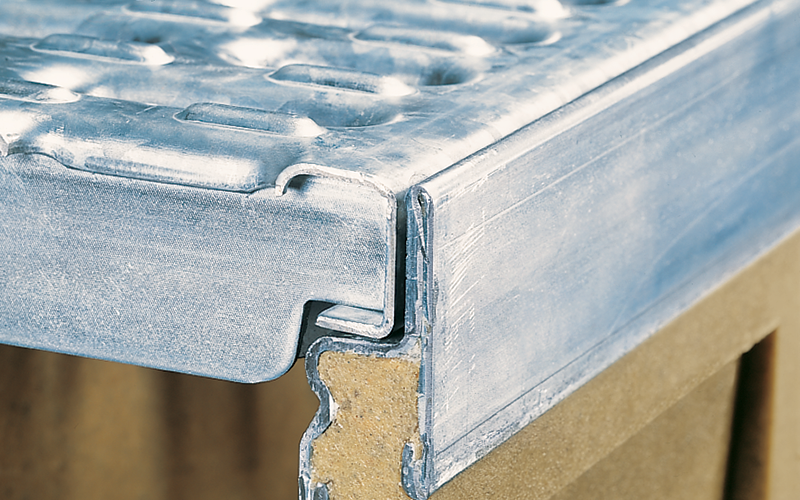

Zaštitni rub od pocinkovanog čelika

ACO Multiline - liveno gvožđe

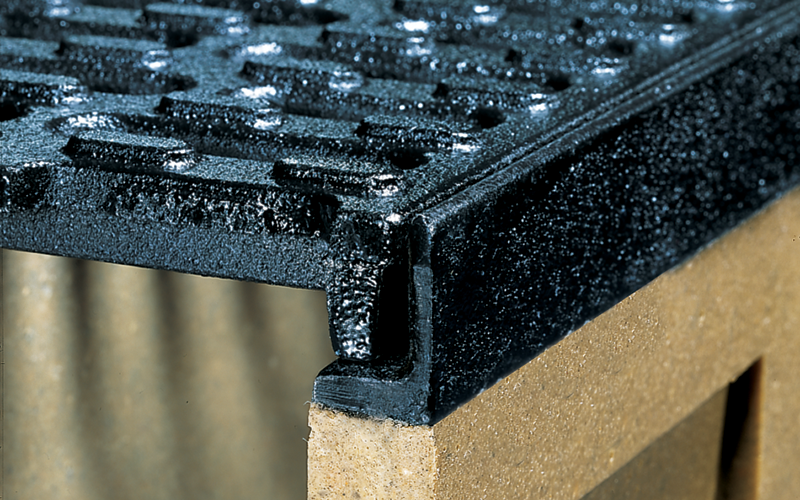

Zaštitni rub od livenog gvožđa

ACO Multiline sabirno okno

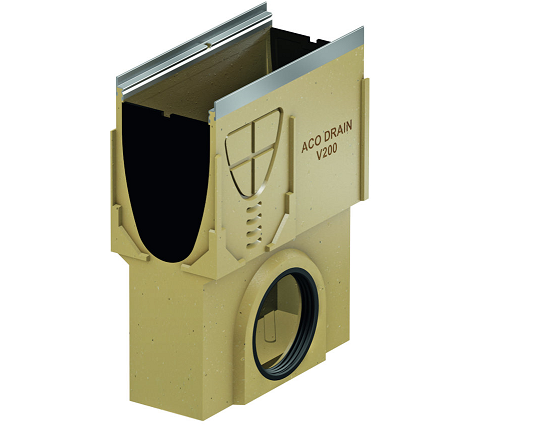

ACO Drain® Multiline® sabirno okno sa horizontalnim odvodom

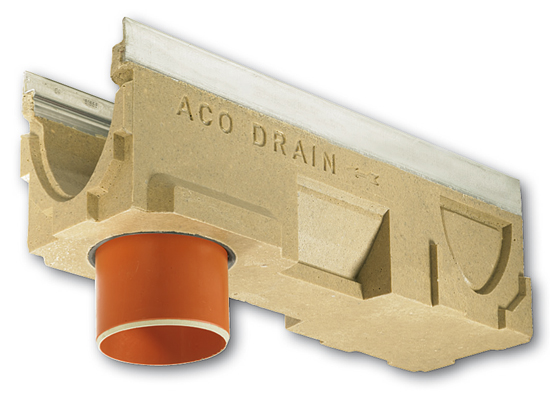

ACO Drain® Multiline® – vertikalni odvod
ACO Drain® Multiline® – vertikalni odvod
ACO Multiline - čeoni poklopac
ACO Drain® Multiline® čeoni poklopac sa horizontalnim odvodom

Niskoprofilni kanali

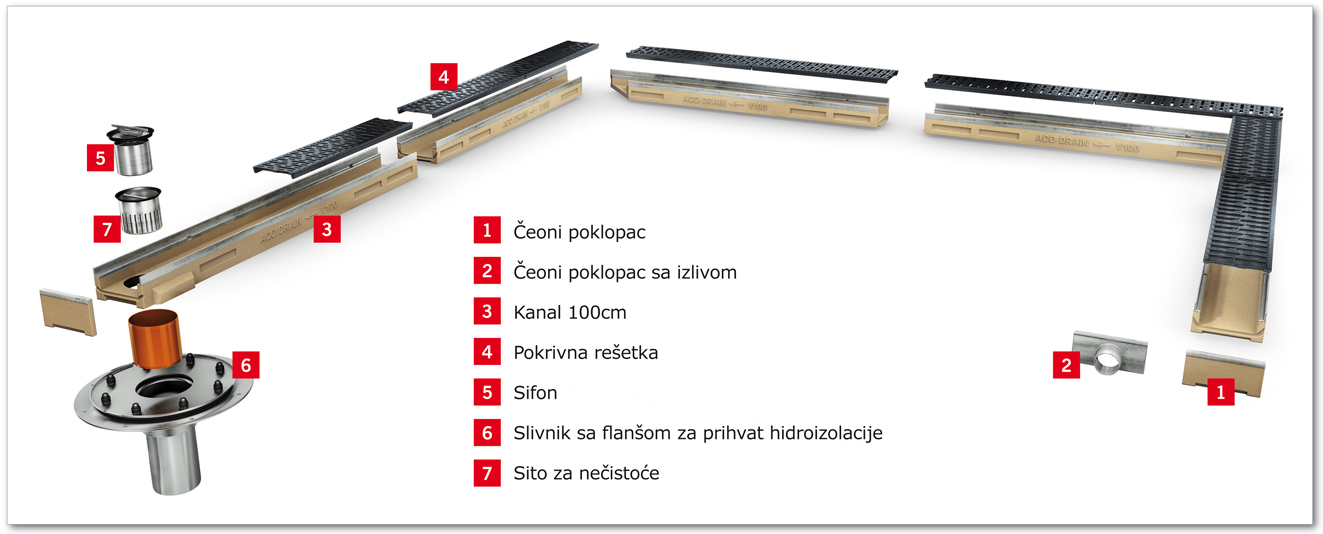

ACO Multiline - niskoprofilni kanali
  • Ugradne visine 6.0, 8.0, 10.0 i 13.0 cm
  • Za garaže, platoe, ravne krovove, terase

ACO Drainlock

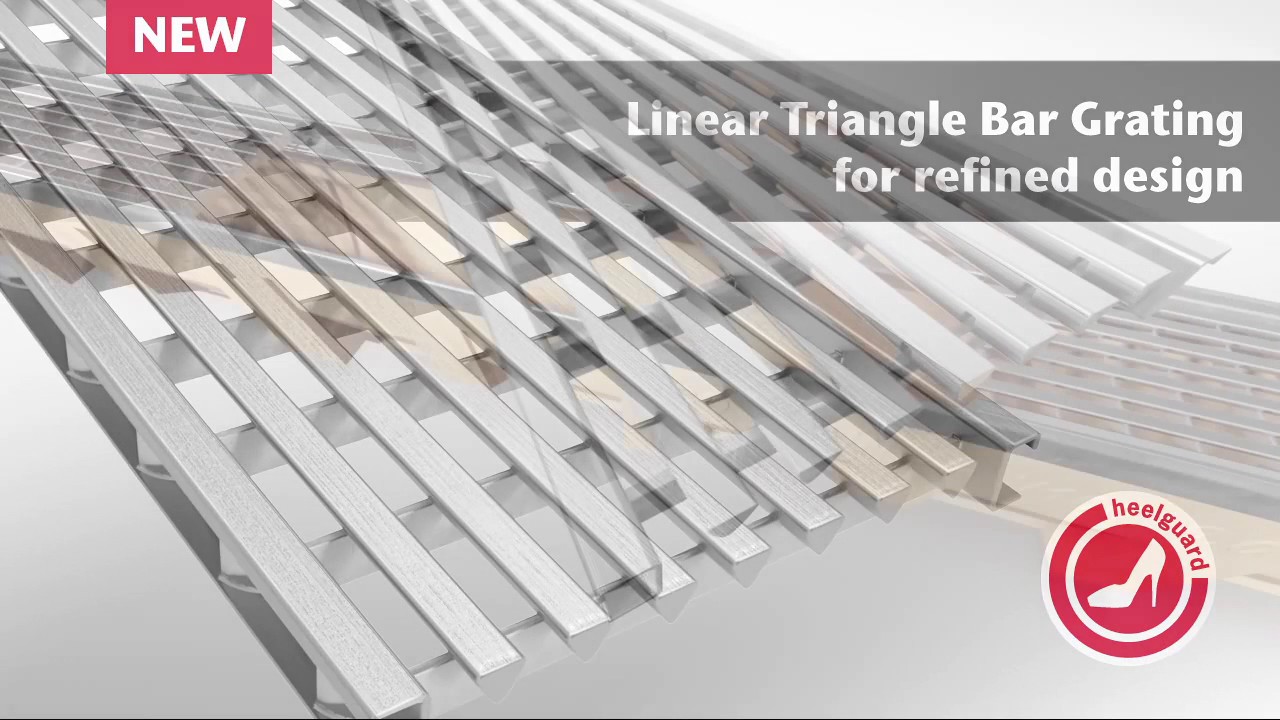

Uživajte u potpunoj slobodi dizajna koju Vam pružaju pokrivne rešetke različitog izgleda, boja i materijala - gvozdene, kompozitne ili od nerđajućeg ili pocinkovanog čelika.

Inovativna ACO proizvodna tehnologija omogućava implementaciju različitih ideja i sposobnosti. Arhitektama se, uz bogat izbor rešetki, nudi mogućnost oblikovanja, stvaranja i naglašavanja jedinstvenog dizajna zadatog projekta, uz garantovano optimalno odvodnjavanje i održivost sistema.

ACO Drain konfigurator
ACO Multiline Seal in - rešetke

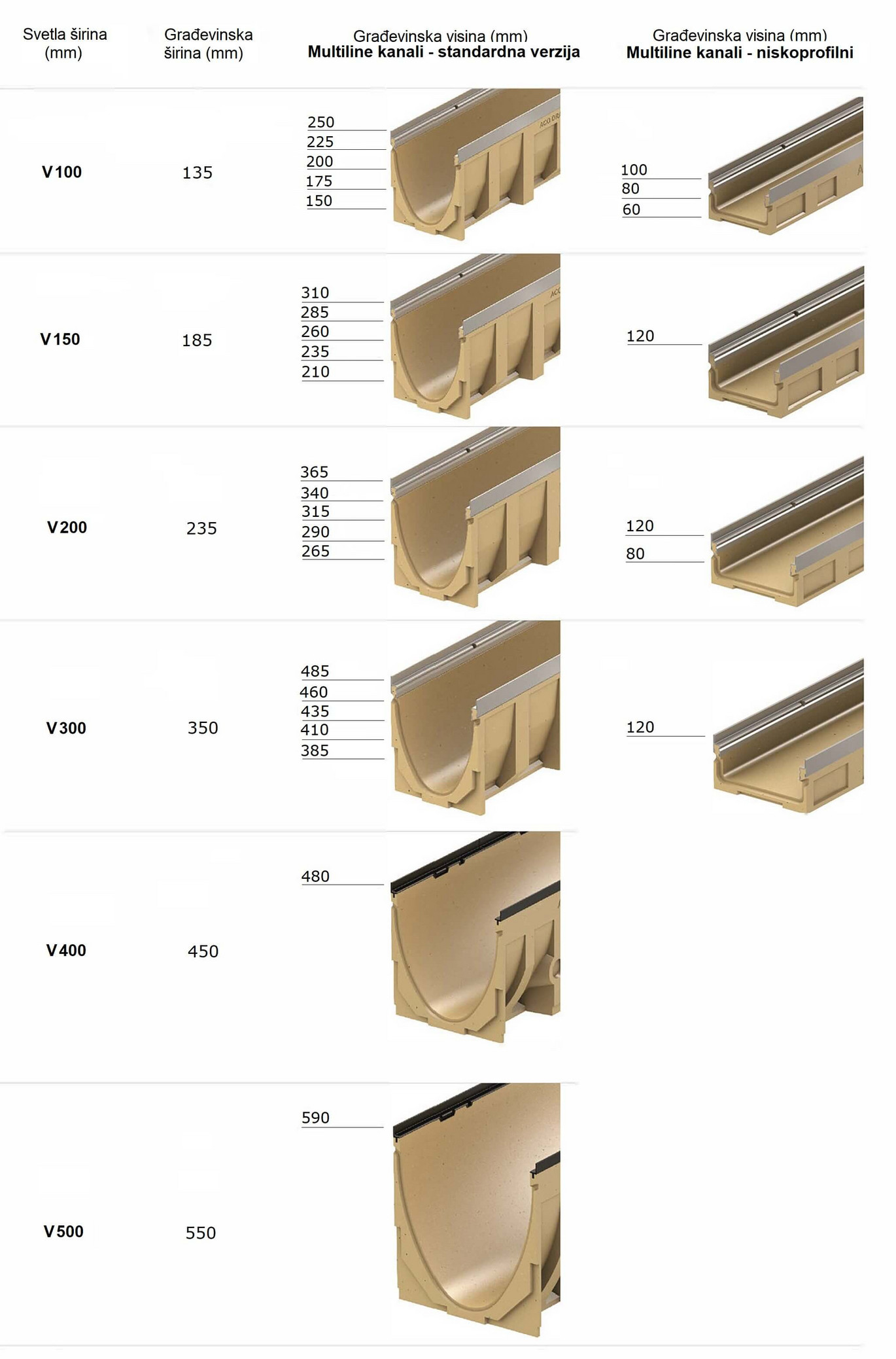

Multiline DIMENZIJE
ACO Multiline SRB pdf
ACO Brošura održavanje kanalapdf
Tehnički crteži ACO DRAIN® Multiline® V 100ZIP pdfZIP dwg
Tehnički crteži ACO DRAIN® Multiline® V 150ZIP pdfZIP dwg
Tehnički crteži ACO DRAIN® Multiline® V 200ZIP pdfZIP dwg
Tehnički crteži ACO DRAIN® Multiline® V 300ZIP pdfZIP dwg
Tehnički crteži ACO DRAIN® Multiline® V 400ZIP pdfZIP dwg
Tehnički crteži ACO DRAIN® Multiline® V 500ZIP pdfZIP dwg

Tehnički opis ACO DRAIN® Multiline® V100ZIP xlsx
Tehnički opis ACO DRAIN® Multiline® V150ZIP xlsx
Tehnički opis ACO DRAIN® Multiline® V200ZIP xlsx
Tehnički opis ACO DRAIN® Multiline® V300ZIP xlsx
Tehnički opis ACO DRAIN® Multiline® V400xlsx
Tehnički opis ACO DRAIN® Multiline® V500xlsx
ACO DRAIN® Multiline ugradnja u asfaltpdf
ACO DRAIN® Multiline ugradnja u betonpdf
ACO DRAIN® Multiline ugradnja u pločnikpdf
ACO DRAIN® Multiline svi slučajevi ugradnjepdfdwg
ACO Uputstvo za ugradnju kanala - opšti deopdf
Deklaracija o performansama ACO Multilinepdf
0.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
53,950,795,001,005,751,15
103,700,375,300,536,450,65
153,500,235,550,376,950,46
203,360,175,800,297,200,36
253,200,135,880,247,500,30
303,090,106,000,207,710,26
352,980,096,130,187,880,23
402,920,076,200,168,000,20
452,840,066,230,148,100,18
502,760,066,250,138,150,16
10.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
57,181,448,501,709,601,92
106,700,679,000,9010,501,05
156,380,439,300,6211,100,74
206,120,319,500,4811,600,58
255,880,249,630,3912,000,48
305,700,199,750,3312,300,41
355,500,169,910,2812,430,36
405,360,1310,000,2512,580,31
455,170,1110,040,2212,780,28
505,100,1010,150,2013,000,26
20.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
511,052,2112,702,5413,902,78
1010,301,0313,001,3015,001,50
159,830,6613,350,8915,751,05
209,400,4713,700,6916,400,82
259,100,3613,880,5616,850,67
308,790,2913,950,4717,220,57
358,400,2414,110,4017,500,50
408,240,2114,200,3617,720,44
458,010,1814,270,3217,870,40
507,850,1614,350,2918,000,36
Multiline V100 - niskoprofilni H=6cm
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
51,920.3841,920.3842,080.416
201,600.0802,080.1042,720.136
401,360.0342,240.0562,800.070
501,200.0242,240.0452,800.056
Multiline V100 - niskoprofilni H=8cm
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
52,540.5092,540.5092,760.551
202,120.1062,760.1383,600.180
401,800.0452,970.0743,710.093
501,590.0322,970.0593,710.074
Multiline V100 - niskoprofilni H=10cm
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
52,400.4802,400.4802,600.520
202,000.1002,600.1303,400.170
401,700.0432,800.0703,500.088
501,500.0302,800.0563,500.070
0.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
510,552,1112,452,4914,152,83
1010,001,0013,401,3415,801,58
159,600,6413,950,9316,951,13
209,320,4714,600,7318,060,90
259,000,3615,000,6018,750,75
308,790,2915,300,5119,200,64
358,570,2415,610,4519,780,57
408,320,2115,800,4020,000,50
458,190,1816,150,3620,520,46
508,000,1616,250,3320,900,42
10.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
516,103,2218,453,6920,504,10
1015,201,5219,201,9222,502,25
1514,650,9820,101,3423,851,59
2014,180,7120,801,0425,001,25
2513,750,5521,250,8526,001,04
3013,410,4521,600,7226,700,89
3512,950,3722,050,6327,300,78
4012,800,3222,200,5628,000,70
4512,420,2822,500,5028,350,63
5012,250,2522,800,4628,750,58
20.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
521,654,3324,354,8726,755,35
1020,302,0325,002,5028,502,85
1519,501,3025,951,7330,302,02
2019,000,9526,601,3331,601,58
2518,250,7327,251,0932,881,32
3018,000,6027,600,9233,751,13
3517,500,5028,000,8034,650,99
4017,000,4328,400,7135,200,88
4516,650,3728,580,6435,550,79
5016,250,3328,750,5836,000,72
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
53,950,795,301,066,251,25
103,700,375,870,597,260,73
153,540,246,250,427,890,53
203,400,176,540,338,360,42
253,300,136,750,278,720,35
303,180,116,900,239,100,30
353,080,097,040,209,210,26
402,990,077,120,189,210,23
452,910,067,250,169,210,20
502,830,067,300,159,210,18
0.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
521,254,2524,254,8527,005,40
1020,152,0225,502,5529,802,98
1519,501,3026,851,7931,952,13
2019,000,9528,001,4034,001,70
2518,500,7428,751,1535,251,41
3018,000,6029,400,9836,301,21
3517,680,5130,100,8637,451,07
4017,280,4330,400,7638,400,96
4517,100,3831,050,6939,150,87
5016,750,3431,500,6340,000,80
10.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
528,255,6531,756,3535,007,00
1026,502,6533,003,3038,003,80
1525,951,7334,352,2940,202,68
2025,201,2635,601,4642,402,12
2524,500,9836,501,4644,501,78
3024,000,8037,501,2545,901,53
3523,450,6738,150,9746,901,34
4023,040,5838,880,9748,001,20
4522,730,5139,150,8749,051,09
5022,000,4439,500,7949,841,00
20.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
537,557,5141,508,3045,209,04
1035,203,5242,504,2547,104,77
1533,752,2543,502,9050,403,36
2033,001,6544,682,2352,802,64
2532,251,2945,751,8355,002,20
3031,501,0546,801,5657,001,90
3530,800,8847,811,3758,451,67
4030,400,7648,601,2259,601,49
4529,700,6649,051,0960,301,34
5029,500,5949,500,9961,001,22

Multiline V200 - niskoprofilni H=8cm
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
51,930,383,020,603,730,08
101,800,183,420,344,400,44
151,690,113,690,254,800,32
201,600,083,840,194,800,24
251,540,063,950,164,800,19
301,470,054,070,144,800,16
351,410,044,130,124,800,14
401,360,034,190,114,800,12
451,310,034,250,094,800,11
501,270,034,300,094,800,10
Multiline V200 - niskoprofilni H=12cm
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
55,301,067,141,438,451,69
105,000,508,000,809,850,99
154,830,328,580,5710,800,72
204,660,239,000,4511,500,58
254,500,189,300,3712,100,48
304,350,159,540,3212,450,42
354,240,129,760,2812,600,36
404,100,109,920,2512,600,32
454,000,0910,100,2212,600,28
503,900,0810,200,2012,600,25
0.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
569,0513,8176,0015,2082,0016,40
1065,306,5377,507,7587,108,71
1563,454,2380,255,3593,006,20
2062,403,1283,004,1598,004,90
2561,252,4586,003,44102,504,10
3060,302,0187,902,93106,503,55
3559,501,7090,302,58109,203,12
4058,801,4792,002,30112,802,82
4558,051,2993,602,08115,202,56
5057,501,1595,001,90118,002,36
10.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
587,0017,4094,0018,80101,0020,20
1081,608,1695,509,55105,8010,58
1579,355,2998,256,55111,907,46
2077,803,89101,005,05118,205,91
2576,503,06104,004,16123,004,92
3075,302,51106,203,54127,504,25
3574,552,13108,403,10130,903,74
4073,601,84110,602,77134,403,36
4572,451,61112,802,51138,153,07
5071,501,43114,002,28141,002,82
20.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
5106,6021,32114,3022,86122,5024,50
1099,409,94114,5011,45126,0012,60
1596,456,43116,407,76132,008,80
2094,404,72119,805,99138,006,90
2593,003,72122,504,90144,005,76
3091,503,05125,104,17149,104,97
3590,302,58128,103,66152,954,37
4089,202,23130,003,25156,803,92
4588,201,96132,302,94160,203,56
5087,001,74133,502,67164,003,28
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
56,351,278,901,7810,602,12
106,070,6110,101,0112,501,25
155,850,3910,880,7313,860,92
205,620,2811,480,5714,800,74
255,450,2211,900,4815,180,61
305,280,1812,300,4115,180,51
355,150,1512,600,3615,180,43
405,000,1312,880,3215,180,38
454,860,1113,140,2915,180,34
504,750,1013,300,2715,180,30
20.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
5130,0026,00140,0028,00150,0030,00
10121,6012,60141,0014,10156,0015,60
15118,507,90144,759,65165,0011,00
20116,405,82149,207,46173,208,66
25114,504,58153,506,14181,007,24
30114,003,80157,805,26189,006,30
35112,003,20161,004,60194,955,57
40110,802,77165,204,13200,005,00
45109,802,44168,303,74205,654,57
50109,002,18170,503,41210,004,20
20.0
Nagib0%0,5%1%
Dužina do izliva
L [m]		Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]Q [l/s]q [l/s/m]
5257,5051,50272,5054,50289,0057,80
10238,5023,85268,0026,80292,0029,20
15231,4515,43273,0018,20304,5020,30
20227,0011,35279,6013,98319,0015,95
25224,258,97285,0011,40330,0013,20
30222,007,40291,009,70341,0011,37
35219,456,27297,008,49352,0010,06
40217,605,44304,407,61363,209,08
45216,454,81311,006,91373,958,31
50213,504,27315,006,30380,007,60
